Whole-house water filtration systems face a difficult engineering challenge: treating high volumes of water instantaneously without throttling household water pressure. The US Water Systems Magna Cartridge Filter attempts to balance these competing demands using a high-flow multi-stage cartridge array priced at $879.00. Built around electroadsorptive and carbon filtration media, this point-of-entry (POE) system targets severe municipal contaminants—including heavy metals and disinfection byproducts—while delivering an extraordinary 25 gallons per minute (GPM) throughput. At ClearCurrent, we analyzed third-party field evaluations and technical data to evaluate whether this uncertified system lives up to its heavy-duty claims.
System Overview and Core Technology

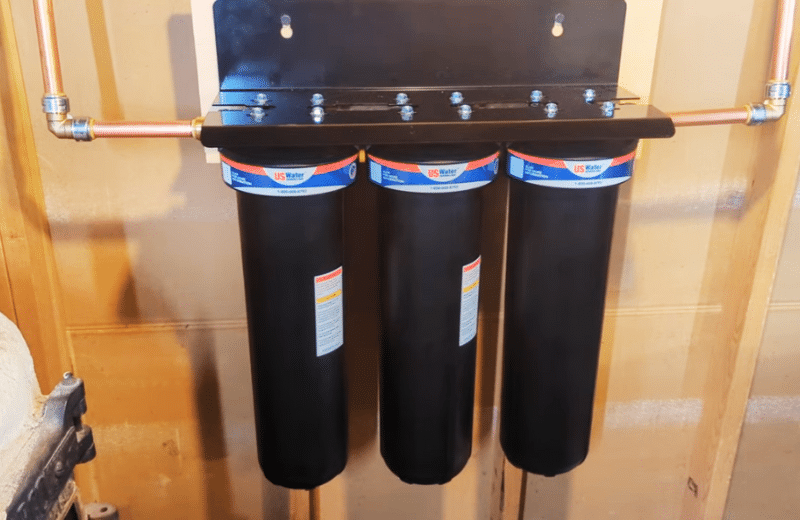

The Magna system relies on a multi-housing setup engineered for high-demand residential environments. Unlike traditional whole-home systems that utilize standard melt-blown sediment filters or granular carbon alone, the Magna integrates three distinct filtration mechanisms: mechanical straining, activated carbon adsorption, and a specialized electroadsorptive technology known as the Disruptor filter.
This electroadsorptive cartridge utilizes boehmite—a naturally occurring aluminum oxide-hydroxide mineral formed into nano-alumina fibers. Rather than relying purely on physical pore size to strain impurities, boehmite fibers create a high positive electrical charge (zeta potential) that attracts and traps negatively charged contaminants such as heavy metals, specific viruses, and fine colloidal particulates. Combined with a central activated carbon block, the system aims to clear chemical compounds and heavy metals across a 30,000-gallon filter lifespan.
| Specification | Details |
|---|---|
| System Retail Price | $879.00 |
| Maximum Flow Rate | 25 GPM |
| Filter Capacity | 30,000 gallons |
| Operating Mechanism | Mechanical + Activated Carbon + Electroadsorptive (CZF) |
| Annual Maintenance Cost | $150 – $400 |
| Performance Certifications | None |
| Housing Warranty | Lifetime |
Filtration Efficiency: Real-World Lab Findings
Reported lab testing conducted on municipal water supplies downstream of confirmed lead service lines reveals a nuanced performance picture. In municipal tap testing, the Magna system successfully cleared targeted trace metals—achieving complete removal of copper, lead, molybdenum, and nitrates in analyzed post-filter samples.
However, performance on volatile organic compounds and disinfection byproducts demonstrated the structural limitations inherent to cartridge-based filtration. Trihalomethanes (THMs)—specifically chloroform and bromodichloromethane—were reduced by roughly 72% and 40% respectively in initial lab evaluations. While this marks a measurable improvement over raw tap water, lingering concentrations remained well above strict health-based guideline levels.
This partial removal highlights a fundamental physical constraint: rapid water delivery at 25 GPM severely limits contact time between chemical pollutants and the activated carbon bed. For aggressive organic chemical removal or high disinfection byproduct loads, heavy backwashing tank-style media beds remain vastly superior due to their significantly larger volume of activated carbon.
Transient Aluminum Shedding
An important technical nuance identified during initial lab testing was a subtle uptick in dissolved aluminum levels (reaching approximately 0.063 PPM) immediately following system installation. Manufacturer technical support confirmed this occurrence stems from temporary shedding off the freshly manufactured boehmite nano-alumina fibers in the Disruptor cartridge. While the reported levels remain well within safe drinking water thresholds and decline rapidly after an initial flush period, sensitive households should account for this temporary startup behavior.
Flow Capacity and Household Performance
Where the Magna truly excels is fluid dynamics. Maintaining a rated delivery capacity of 25 GPM, the unit operates far above standard residential whole-house cartridge systems, which typically cap out between 10 and 15 GPM.
During practical field observations, operating multiple high-demand fixtures simultaneously—such as concurrent showers, laundry cycles, and outdoor spigots—yielded no perceptible pressure drop downstream. For large, multi-bathroom homes experiencing severe flow restrictions from restrictive multi-stage filters, the Magna’s high-velocity housing architecture provides an exceptional operational advantage.
Installation Demands and Maintenance Realities
Installing a point-of-entry cartridge array requires substantial plumbing work. The Magna system must be integrated directly into the main supply line shortly after the pressure tank or municipal shutoff valve. Homeowners should anticipate sweating copper fittings or installing PEX transition manifolds, along with dual shutoff valves and a manual bypass loop to facilitate filter servicing without interrupting the primary home supply.
Ongoing maintenance, conversely, is straightforward. Cartridge changeouts require depressurizing the filter sumps, unscrewing the heavy-duty plastic housings with the provided spanner wrench, replacing the 30,000-gallon elements, and lubricating the rubber O-rings. Depending on household water consumption and turbidity, annual media replacement costs range between $150 and $400. The manufacturer backs the external sumps with a robust lifetime warranty, though replacement cartridges carry no independent coverage.
The Certification Vacuum and Final Verdict
The primary drawback of the US Water Systems Magna filter is its total absence of formal NSF/ANSI certifications (such as Standards 42, 53, or 401). While the underlying boehmite and carbon block materials are well-established in industrial filtration, the fully assembled Magna system has not undergone independent third-party laboratory verification for structural integrity or certified contaminant reduction claims.
For buyers seeking fully validated, NSF-marked systems for chemical or heavy metal removal, this reliance on internal testing data requires a leap of faith. However, for homeowners prioritizing uncompromised 25 GPM flow rates, high-grade housing construction, and effective general-purpose filtration, the Magna delivers strong operational value despite its lack of official certification badges.
