Activated carbon remains the standard workhorse of residential water treatment. However, performance across carbon systems varies significantly based on media density, pore structure, filter housing design, and contact time. While basic pitch-based granular filters primarily address chlorine taste and odor, high-density carbon blocks, specialized bone char, and multi-media arrangements target complex chemical compounds, heavy metals, and disinfection byproducts. Evaluating structural specs, third-party certifications, and long-term operating costs helps separate high-performance filtration hardware from routine marketing claims.
Understanding Carbon Filtration Media
Activated carbon functions primarily through adsorption, trapping dissolved organic compounds within an expansive internal pore network. Coconut shell carbon offers fine microporosity well-suited for volatile organic compounds (VOCs), while coal and wood carbons provide broader mesoporous and macroporous structures appropriate for larger organic molecules.
Physical structure dictates filtration parameters. Granular Activated Carbon (GAC) minimizes water pressure drops and delivers fast flow rates, but loose channeling can allow water to bypass active surfaces. Compressed carbon blocks force water through a uniform matrix, extending hydraulic dwell time and enabling mechanical particle trapping down to sub-micron levels. For specialized contaminants like inorganic fluoride or chloramines, raw carbon must be augmented with catalytic beds or calcium-rich bone char media.
Point-of-Use Under-Sink & Countertop Options
Clearly Filtered Under Sink System
Retailing at approximately $550, this multi-cartridge under-sink unit combines granular activated carbon, ion-exchange resin, and proprietary secondary filter beds. In documented municipal test evaluations, the system achieved 100% removal of detectable chlorine, chloroform, and total trihalomethanes (THMs), while substantially lowering copper and uranium levels.
Because the secondary filter cartridges incorporate ion-exchange media, reported lab analyses indicated minor mineral exchange, slightly reducing calcium and magnesium while introducing small amounts of sodium into the product water. The system operates at roughly 1.01 GPM (filling two standard cups in approximately 7.5 seconds), representing about a 50% drop from standard faucet pressure. It holds a official WQA performance certification for NSF/ANSI Standard 42 (chlorine, taste, and odor reduction). Ongoing filter replacement costs average about $0.22 per gallon over its 2,000-gallon service life.

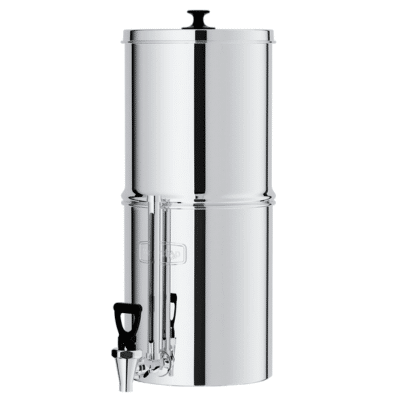

Waterdrop King Tank
For renters or buyers seeking countertop installation without under-sink plumbing modifications, the Waterdrop King Tank ($229+) utilizes a high-density block filter certified to NSF/ANSI Standards 42 and 53. Rated for 3,000 gallons per filter set, its operational cost drops to roughly $0.06 per gallon, making it an economical option for health-related chemical reduction.
Point-of-Entry Whole-House Carbon Systems
US Water Systems Bodyguard Fluoride Removal System
Whole-home carbon filtration requires substantial media volume to maintain household water pressure while providing sufficient contact time. The USWS Bodyguard ($1,299) uses a large tank filled with bone char carbon media specifically intended to target inorganic fluoride alongside chlorine, chloramines, and heavy metals.
Documented test runs on fluoridated city supplies demonstrated total removal of fluoride, aluminum, copper, molybdenum, and volatile disinfection byproducts like chloroform, alongside a 50% reduction in sulfate and strontium. The tank's media bed carries a 400,000-gallon capacity, yielding a low operational cost of roughly $0.003 per gallon. Although the assembled tank system lacks formal NSF certification, its heavy-duty media bed serves high-volume residential lines reliably.
US Water Systems POE Cartridge Filter
As a non-backwashing alternative to media tanks, cartridge-based entry-point units like the USWS POE Cartridge system ($879) provide point-of-entry protection using replaceable drop-in filters. Rated for 30,000 gallons at roughly $0.012 per gallon, it acts as a primary sediment and chlorine interceptor before water reaches home appliances.
Countertop Dispensers, Pitchers, and Specialty Filters
Epic Pure Water Filter Dispenser
Gravity-fed countertop dispensers avoid plumbing connections entirely. The Epic Pure Dispenser ($75) utilizes a compressed carbon filter insert rated for 150 gallons. Reported performance data confirmed high removal rates for chlorine, heavy copper, and uranium. With replacement costs near $0.31 per gallon, it serves as an accessible low-upfront option for smaller households.

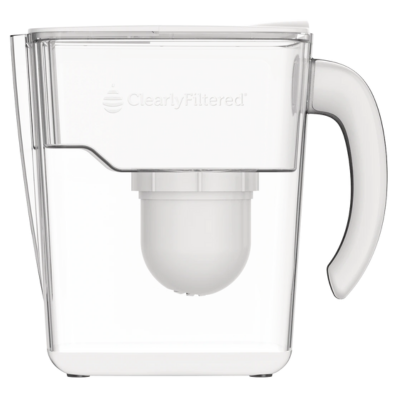

Clearly Filtered Pitcher
Selling for around $90, the Clearly Filtered Pitcher targets buyers seeking portable convenience backed by health-related reduction claims. Tested against NSF/ANSI Standards 42 and 53, it addresses heavy metals, PFAS, and pesticide residues across a 100-gallon filter lifespan. Due to the small media volume, operating costs run higher at approximately $0.55 per gallon.
Weddell Duo Shower Filter
Carbon media can also be optimized for high-temperature bathing water. The Weddell Duo ($89.99) employs thermal-resistant carbon media certified under NSF/ANSI Standard 177 for chlorine reduction in hot water. With an 8,000-gallon service capacity costing $0.003 per gallon, it preserves shower flow rates while minimizing chlorine inhalation during hot showers.
Cost and Spec Comparison
Selecting a carbon filtration system involves balancing upfront hardware expenses against long-term maintenance costs. The table below outlines key parameters across evaluated products.
| Model Name | Form Factor | Rated Capacity | Performance Certification | Est. Cost / Gallon |
|---|---|---|---|---|
| Clearly Filtered Under Sink | Under-Sink | 2,000 gal | WQA NSF 42 | $0.22 |
| USWS Bodyguard | Whole-House Tank | 400,000 gal | Uncertified System | $0.003 |
| Epic Pure Dispenser | Countertop Gravity | 150 gal | Uncertified System | $0.31 |
| Waterdrop King Tank | Countertop Tank | 3,000 gal | NSF 42, 53 | $0.06 |
| Clearly Filtered Pitcher | Pitcher | 100 gal | NSF 42, 53 | $0.55 |
| Weddell Duo | Shower Filter | 8,000 gal | NSF 177 | $0.003 |
| USWS POE Cartridge | Whole-House Cartridge | 30,000 gal | Uncertified System | $0.012 |
Essential Purchasing Guidelines
To ensure reliable water treatment performance, focus on three core criteria during evaluation:
- Match Media to Contaminants: Basic granular activated carbon handles taste and odor, but removing VOCs, lead, PFAS, or fluoride requires solid carbon blocks, catalytic media, or hydroxyapatite bone char.
- Examine Performance Data: Look beyond brand claim lists. Verify whether products carry official NSF/WQA certifications or published independent lab testing under Standards 42 (aesthetic), 53 (health effects), or 401 (emerging pollutants).
- Calculate Real Operating Costs: Divide replacement cartridge costs by gallon lifespan. Pitchers and small gravity units often carry low initial purchase prices but high per-gallon costs ($0.30 to $0.55/gal), whereas high-capacity under-sink and whole-house systems offer far better long-term value ($0.003 to $0.22/gal).
